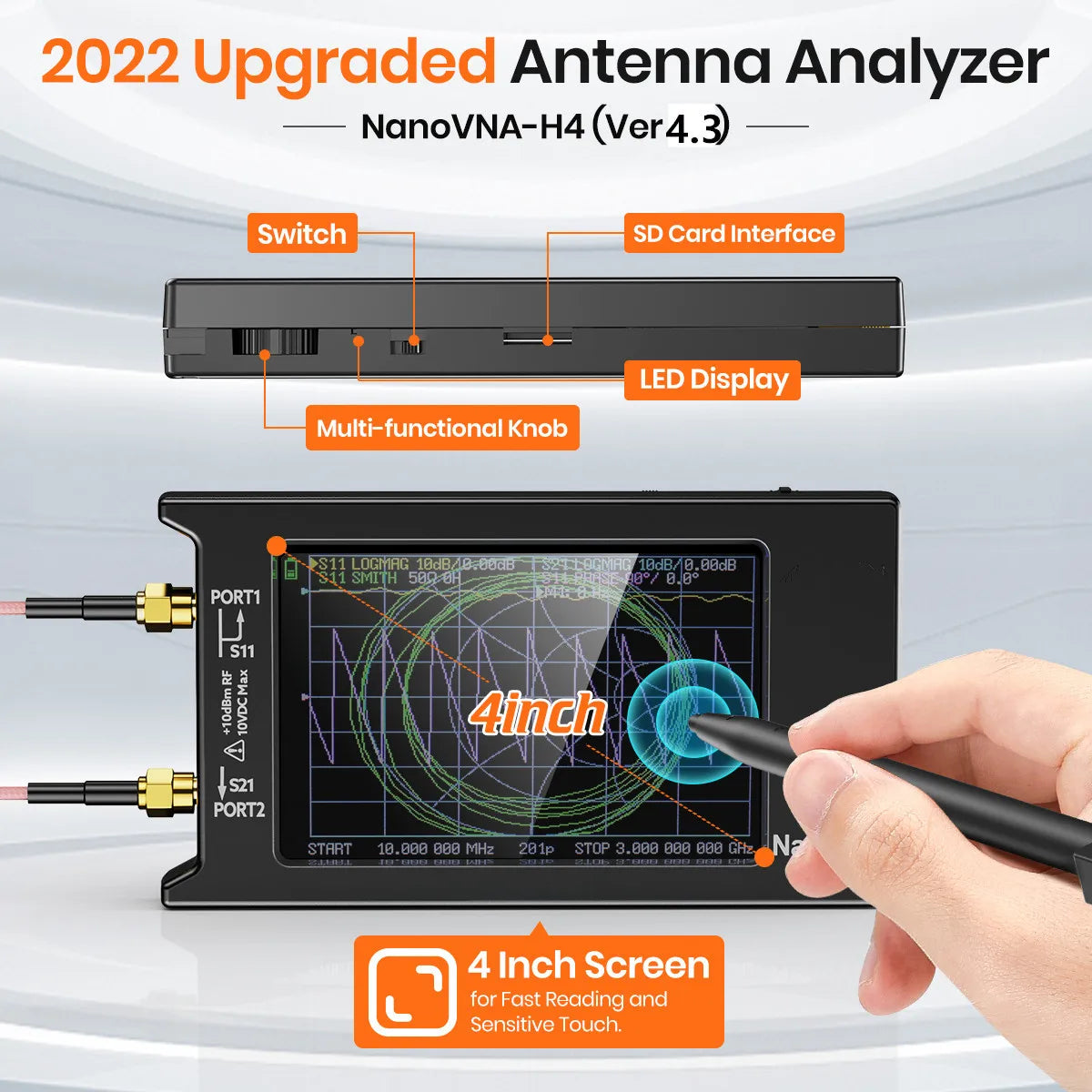

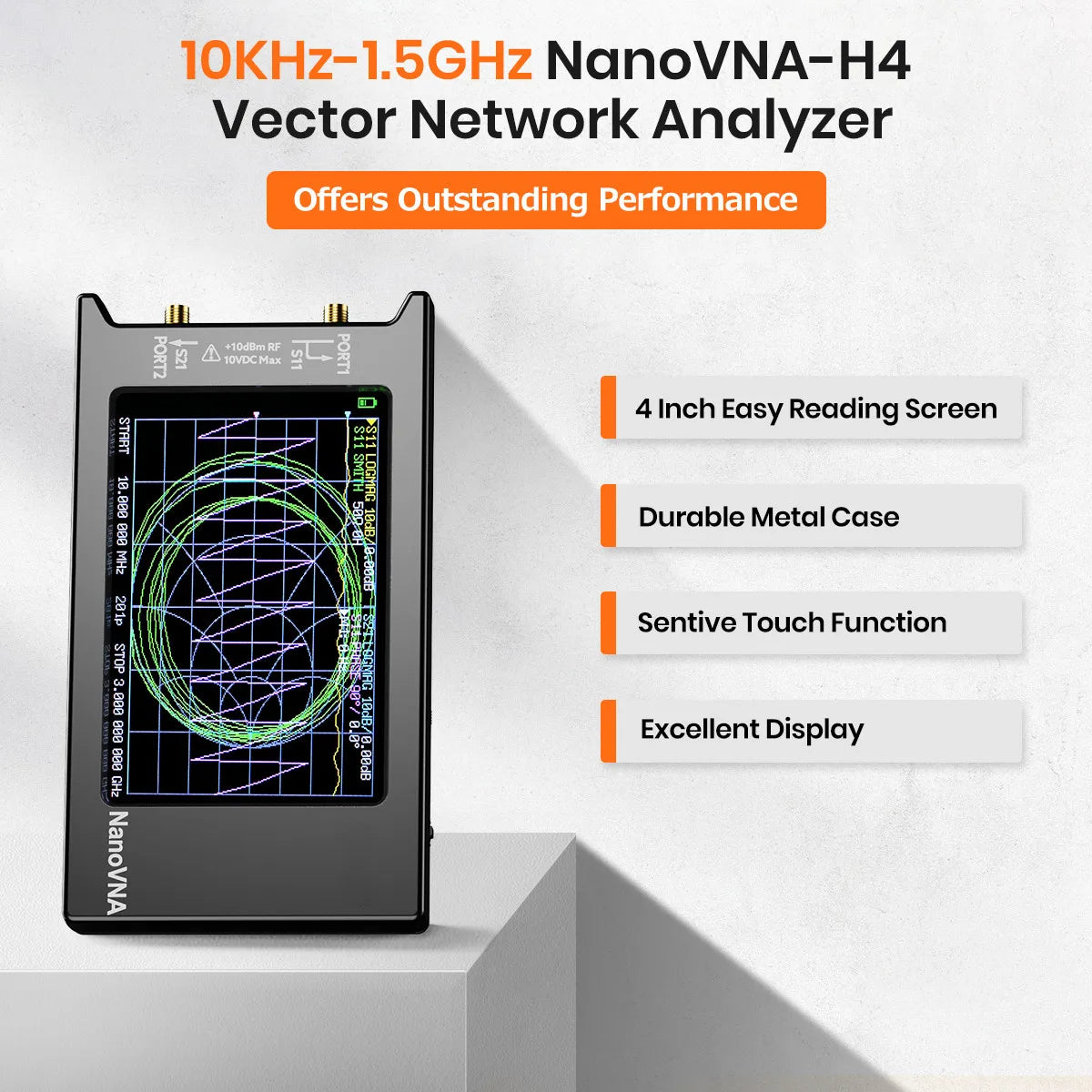

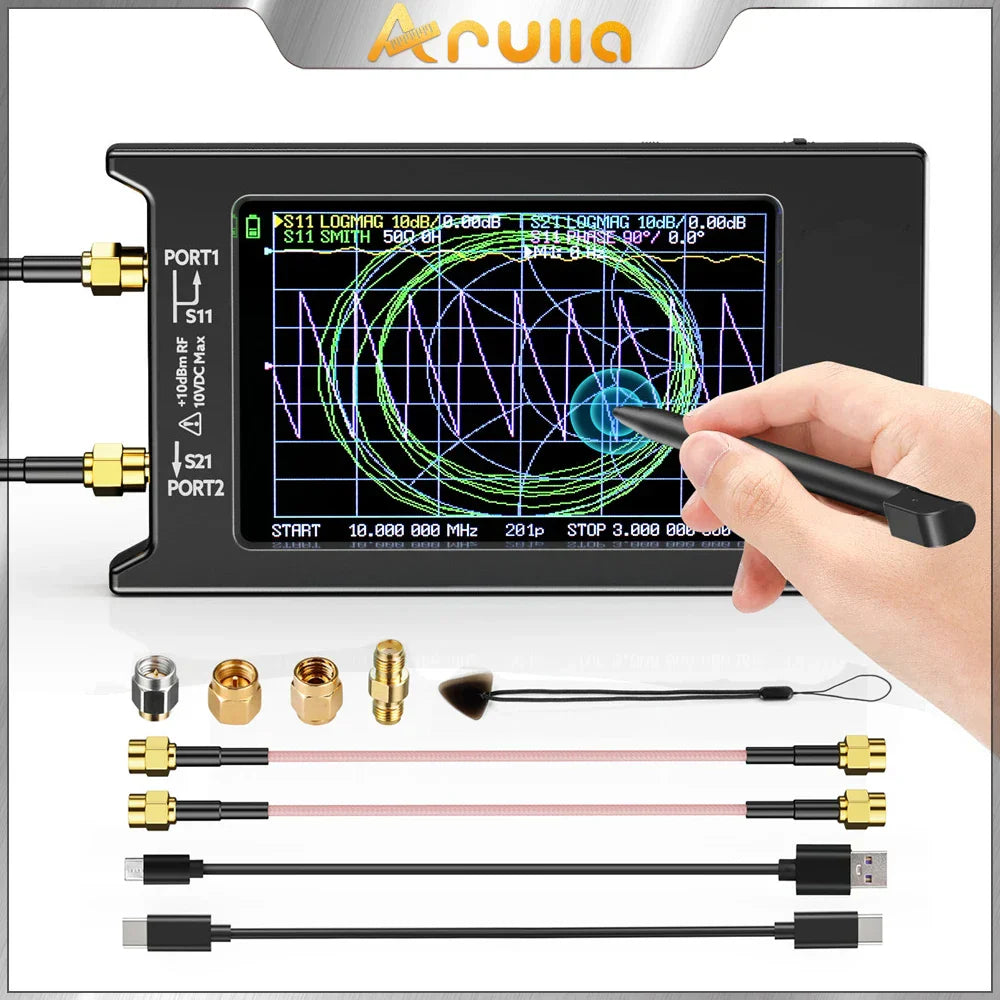

Hugen NanoVNA-H4 Vector Network Antenna Analyzer, Spectrum Analyzer,
Hugen NanoVNA-H4 Vector Network Antenna Analyzer, Spectrum Analyzer, - NanoVNA-H4 / VIP Price is backordered and will ship as soon as it is back in stock.
By purchasing this offer, you acknowledge that you have read and agreed to our website Terms of Service and billing terms. This offer is only valid for people in our VIP Membership program. If you are a first time buyer, you will be charged 27.99 dollars each month. Cancel anytime. If you want to pay full price and not enroll in any membership, please click the Guest Add to Cart Button below or at the bottom of this page.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Hugen NanoVNA-H4 Vector Network Antenna Analyzer, Spectrum Analyzer,
Highlight title
Text to highlight a key feature of your product
Description
Description
- Brand Name:Vwinget
- Origin:Mainland China
- Certification:CE
- Frequency Range:10KHz -1.5GHz
- Output Power:USB 5V 200mA
- Spectrum analyzer:NanoVNA-H4
- ABS case:75mm x 133mm x 18mm (excluding protrusions)
- HW version:4.3
- RF output:0dbm (±2dbm)

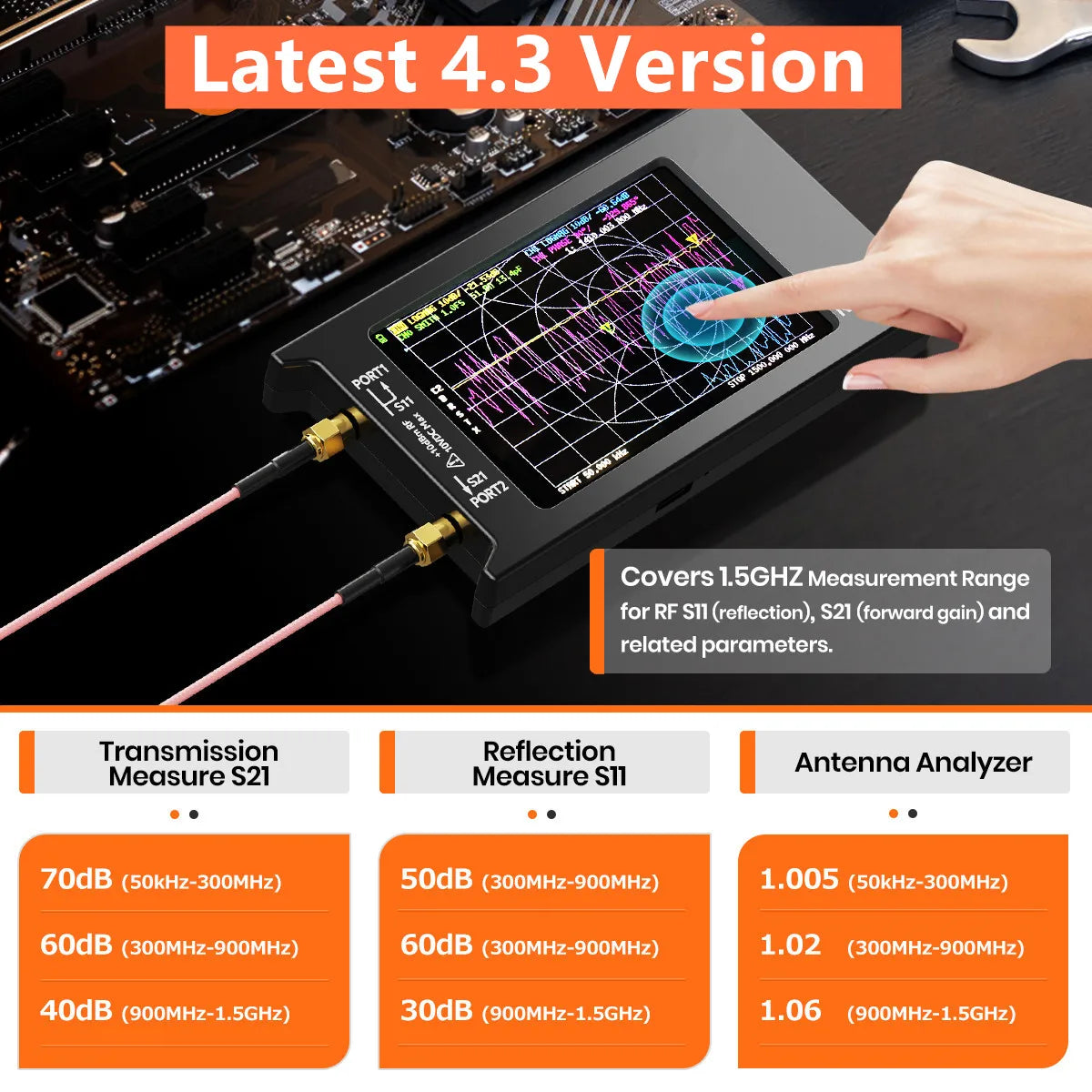

- Measurement range:70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz))
- Port SWR:< 1.1
- Display:3.95 inch TFT (320 x 480)
- USB interface:USB type-C
- Communication mode:CDC (serial)

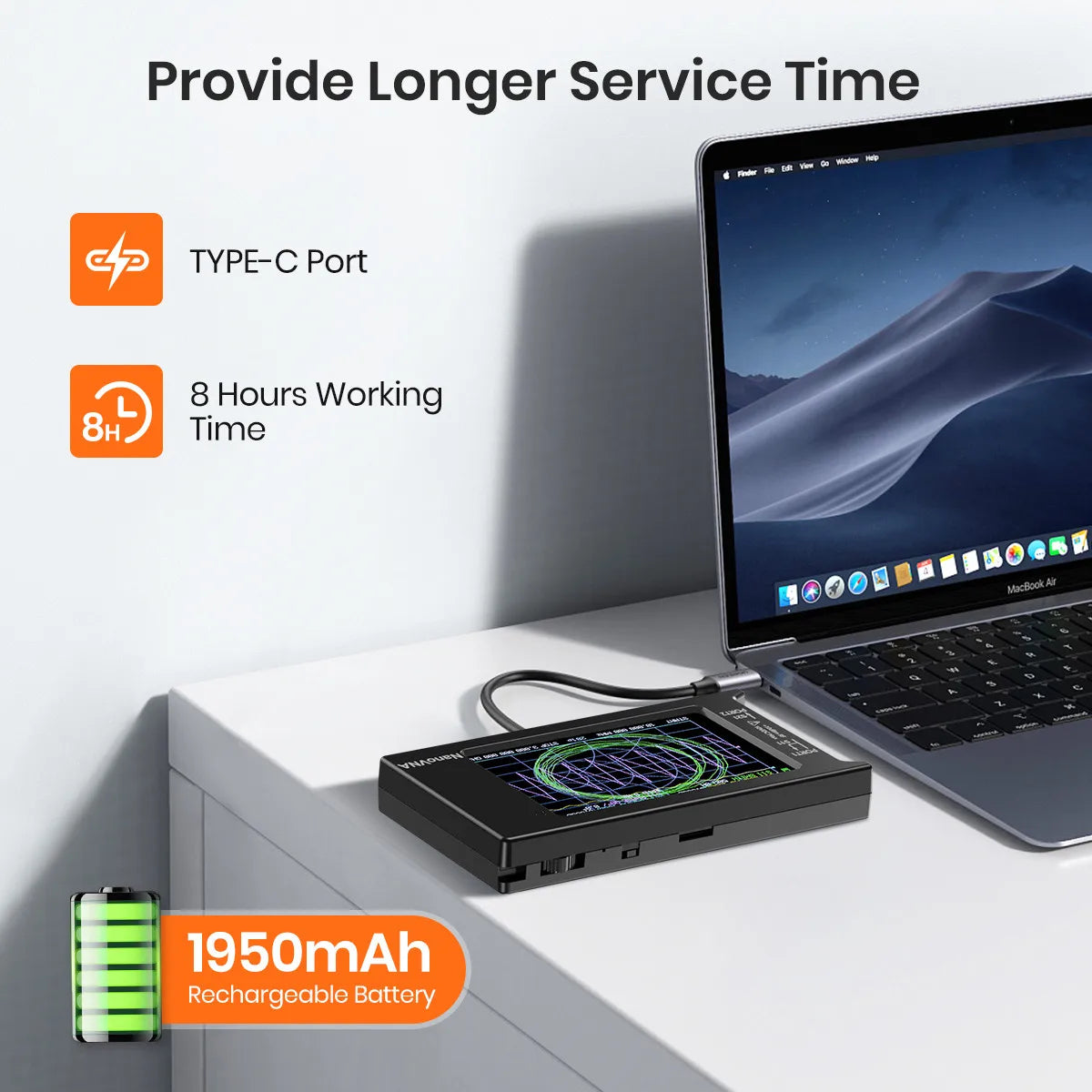

- Power:USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
- Number of scanning points:101 (fixed)
- Display Tracking:4
- Marking:4
- Setting Save:5
- Frequency Tolerance:<2ppm
- Frequency Stability:<0.5ppm
- Choice:yes
- semi_Choice:yes
